DETAILS:
- Universal voltage operation
- Higher 1.5 amp power rating
- Knob-adjustable time delays
- Works with anticipator-type thermostats
- One model replaces many in field

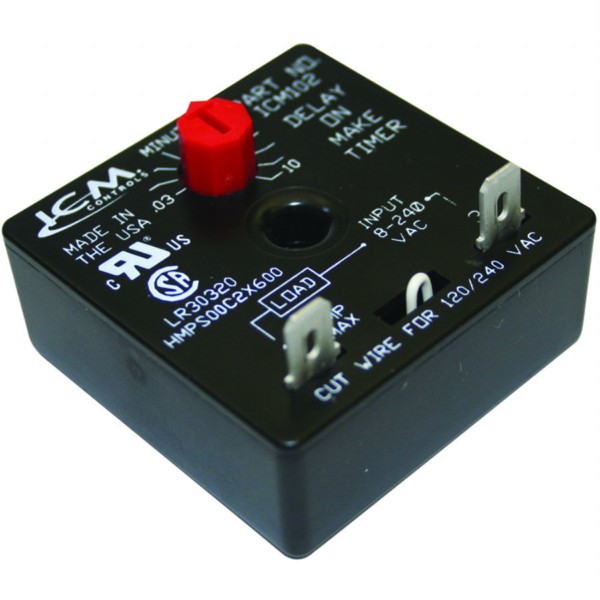

ICM102
Delay On Make Relays (DOM)
Adjustable Time Delay
When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
SPECIFICATIONS:
INPUT
Voltage:
18-240 VAC
1.5 amp
15 amp in-rush
18-240 VAC
1.5 amp
15 amp in-rush
Adjustable Time Delay:
.03-10 minutes (1.5-600 seconds)
.03-10 minutes (1.5-600 seconds)
WEIGHT/DIMENSIONS:
- Weight: 0.1
- Height: 1.25
- Width: 2
- Length: 2
Videos:
No videos found.
Replaces:
A-1: EAC-701-ADJ
Diversified: AC-800
Gemline: 1C310, 1C213
Mars: 32019, 32391, 32367
Supco: TD69
Wagner/DiversiTech: ADM-1
