DETAILS:
- Universal voltage operation
- Higher 1.5 amp power rating
- Knob-adjustable time delays
- Works with anticipator-type thermostats
- One model replaces many in field
- 6-inch wire leads

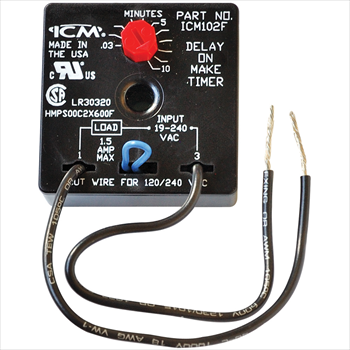

ICM102F
Delay On Make Relays (DOM)
Adjustable Time Delay
When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
With 6″ Wire Leads
SPECIFICATIONS:
INPUT
Voltage:
18-240 VAC
1.5 amp
15 amp in-rush
18-240 VAC
1.5 amp
15 amp in-rush
Adjustable Time Delay:
.03-10 minutes (1.5-600 seconds)
.03-10 minutes (1.5-600 seconds)
WEIGHT/DIMENSIONS:
- Weight: 0.1
- Height: 1.25
- Width: 2
- Length: 2
Videos:
No videos found.
Replaces:
Supco: TD69W
Wagner/DiversiTech: ADM-2
