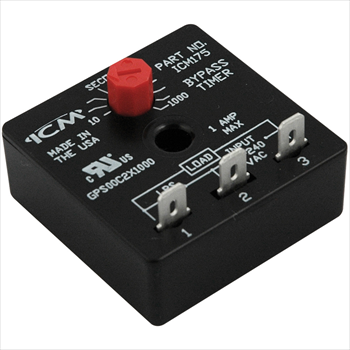

ICM175

,

Bypass Timer Relays

Ideal for low ambient startups

With power applied to the input, the load energizes immediately and remains energized for the length of the time delay, regardless of the state of the switch being bypassed. At the end of the time delay, the condition of the load is determined by the state of the switch.



DETAILS:

  • Designed to bypass a low pressure switch or other device during startup
  • Ideal for low ambient startups
  • Key component for “winter start” kits
  • Helps to reduce nuisance lockouts
  • Universal AC voltage operation
  • Knob-adjustable time delays: 10-1,000 seconds
  • UL Approval: E53944

SPECIFICATIONS:

INPUT
Voltage: 18-240 VAC
Frequency: 50/60 Hz
1 amp maximum
40 mA minimum
10 amp in-rush

WEIGHT/DIMENSIONS:

  • Weight: 0.1
  • Height: 1.25
  • Width: 2
  • Length: 2

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download

Videos:

No videos found.

Replaces:

Mars: 32395

Supco: TD32
