DETAILS:
- Compressor lockout/anti-short cycle timer
- Helps to protect compressors from damage caused by rapid short cycling
- Simple, 2-wire hookup
- Adjustable timing
- Universal voltage
- 6-inch wire leads

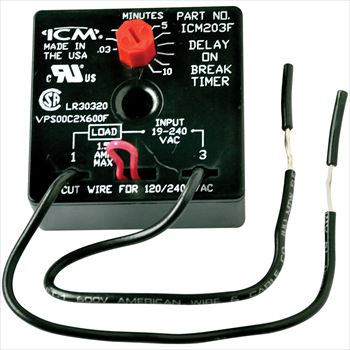

ICM203F
Delay On Break Relays (DOB)
ICM’s Best Selling Time Delay Relays (With 6″ Wire Leads)
Upon application of power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is deenergized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.
SPECIFICATIONS:
INPUT
Voltage:
18-240 VAC
1.5 amp
15 amp in-rush
18-240 VAC
1.5 amp
15 amp in-rush
Knob-Adjustable Time Delay:
.03-10 minutes (1.8-600 seconds)
.03-10 minutes (1.8-600 seconds)
WEIGHT/DIMENSIONS:
- Weight: 0.1
- Height: 1.25
- Width: 2
- Length: 2
Videos:
No videos found.
Replaces:
Supco: TD73W
Wagner/DiversiTech: ADB-2
