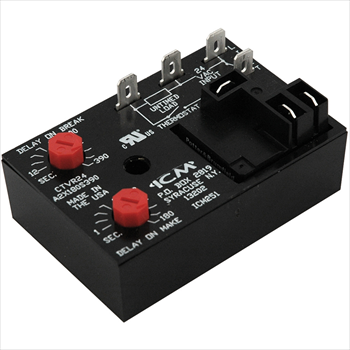

ICM251

Dual Function Fan Delay Timer

DETAILS:

  • Drives fan directly
  • High power, relay output
  • Dual function fan delay timer
  • Controls the circulating fan in heat pump, A/C and forced air systems
  • Off delay controls fan relay to purge ducts of residual air at the end of the heating/cooling cycle

SPECIFICATIONS:

Input: Voltage: 18-30 VAC
Output:
N.O.: 20 amps @ 240 VAC
N.C.: 10 amps @ 240 VAC
Time Delays, Adjustable:
On: 1-180 seconds
Off: 12-390 seconds

WEIGHT/DIMENSIONS:

  • Weight: 0.2
  • Height: 1.25
  • Width: 3
  • Length: 2

LITERARY DOWNLOADS:

pdf
Installation Guide download

Videos:

No videos found.

Replaces:

Mars: 32377, 32378, 32379





Recommended Alternative:

ICM255 (application specific for post purge)
