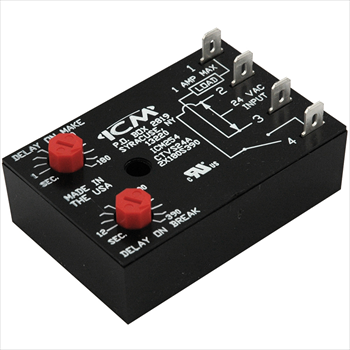

ICM254

Fan Delay Timer

DETAILS:

  • Dual function fan delay timer
  • Controls circulating fan in heat pump, A/C and forced air systems
  • OFF delay controls fan relay to purge ducts of residual air at the end of the heating/cooling cycle
  • ON delay allows air to reach the proper comfort level prior to energizing the fan

SPECIFICATIONS:

Input:
Voltage – 18-30 VAC
Output:
– 1 amp maximum
– 40mA minimum
– 10 amp inrush
Time Delays Adjustable:
– ON: 1-180 seconds
– OFF: 12-390 seconds

WEIGHT/DIMENSIONS:

  • Weight: 0.15
  • Height: 1.25
  • Width: 3
  • Length: 2

LITERARY DOWNLOADS:

pdf
Installation Guide download

Videos:

No videos found.

Replaces:

Watsco: PSTD-000-005W, PSTD-000-060W





Recommended Alternative:

ICM255 (application specific for post purge)
