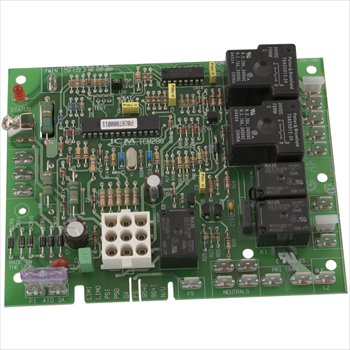

ICM280

FURNACE CONTROL BOARDS, Goodman Replacement Boards

Goodman OEM Replacement Control

Low-Cost Form, Fit And Functional Replacement Board

ICM offers low cost, direct wire for wire replacement furnace controls for many popular OEM models. ICM280 come standard with many safety features including 100% gas shutoff in case of ignition failure.

DETAILS:

Low cost form, fit and functional replacement board for Goodman, Janitrol, TI, White-Rodgers and UTEC
Microprocessor based design for precise timing
Functions with all 24 VAC thermostats
Diagnostic fault codes (blinking LED) for simple troubleshooting
Twinning compatible with another ICM280
For 80+ and 90+ applications
9-pin card slot connection and 9-pin Molex connector on board
UL recognized

SPECIFICATIONS:

Line Voltage Range: 98 to 132 VAC @ 60 Hz
Ignitor: 5A @ 120 VAC

Fan: 2 HP @ 240 VAC

Inducer Motor: 7A @ 250 VAC

Gas Valve: 1A @ 24 VAC

WEIGHT/DIMENSIONS:

Weight: 0.55
Height: 1
Width: 5.75
Length: 4.75

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

Goodman: B18099-06, B18099-08, B18099-10, B18099-13, B18099-13S

UTEC: 1012-933D

Texas Instruments: 41F-5

White-Rodgers: 50T35-730, 50T35-743
