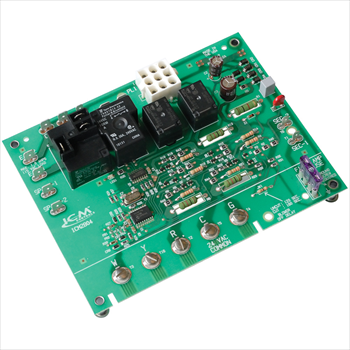

ICM2804

Carrier OEM Replacement Control

DETAILS:

  • Low cost form, fit and functional replacement for Carrier: CES0110074-01
  • Microprocessor-based
  • Controls vent motor and blower control
  • Monitors limit switch, pressure switch and gas valve
  • 100% lockout safety feature
  • Compatible with LP or Natural Gas
  • Status LED for fault codes to aid in troubleshooting

NOTE: This board functions identically as the CES0110074-00 and the CES0110074-01. It is a form, fit and functional replacement of the CES0110074-01. When replacing the CES0110074-00 some quick connectors have to be changed or added. EAC-1 and EAC-2 must have 1/4” connectors. COM, SEC-1 and SEC-2 must have 3/16” connectors.

SPECIFICATIONS:

Electrical:
– Line Voltage Range: 98-132 VAC @ 60Hz
– Cool Blower: 20A, 2 HP, 240 VAC
– Heat: 10A, 240 VAC
– Inducer Motor: 4A FLA, 8A LRA @ 120 VAC
Timing:
– Inducer Pre-Purge Time: 1 second
– Heat Blower On Delay: 45 seconds
– Heat Blower Off Delays: 120 or 180 second
– Cool Blower On Delay: 1 second
– Cool Blower Off Delay: 1 second

WEIGHT/DIMENSIONS:

  • Weight: 1.0

LITERARY DOWNLOADS:

pdf
Application/Install Guide download
pdf
Sell Sheet download

Videos:

No videos found.

Replaces:

Carrier CES0110074-00, CES0110074-01
