ICM2805A

,

Nordyne OEM Replacement Control

Low-Cost Form, Fit And Functional Replacement Board

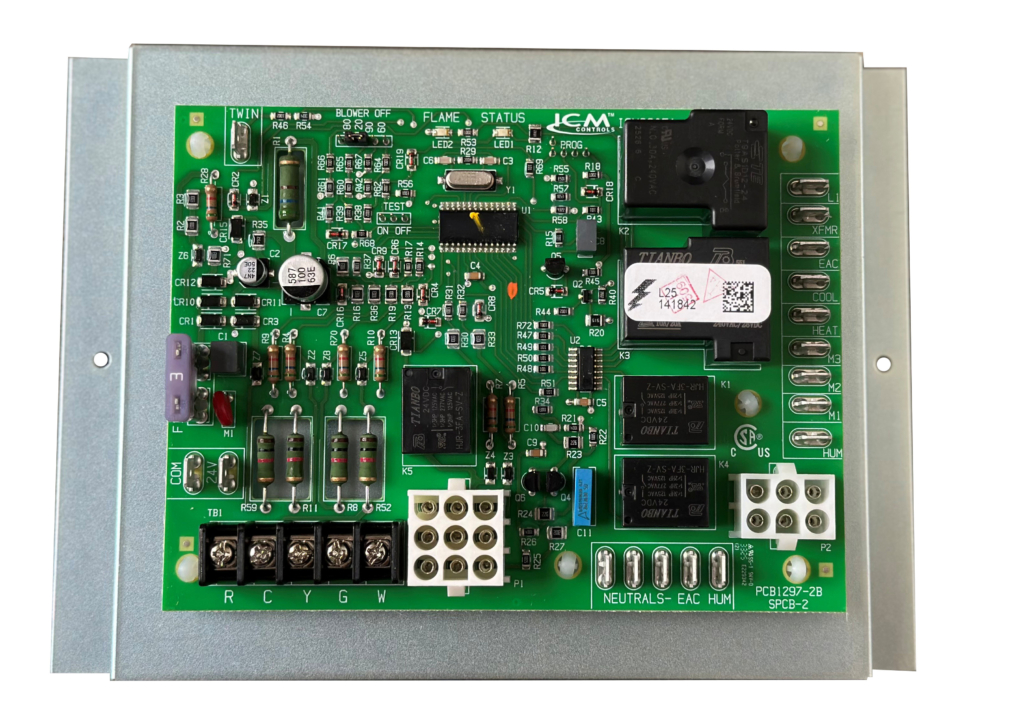

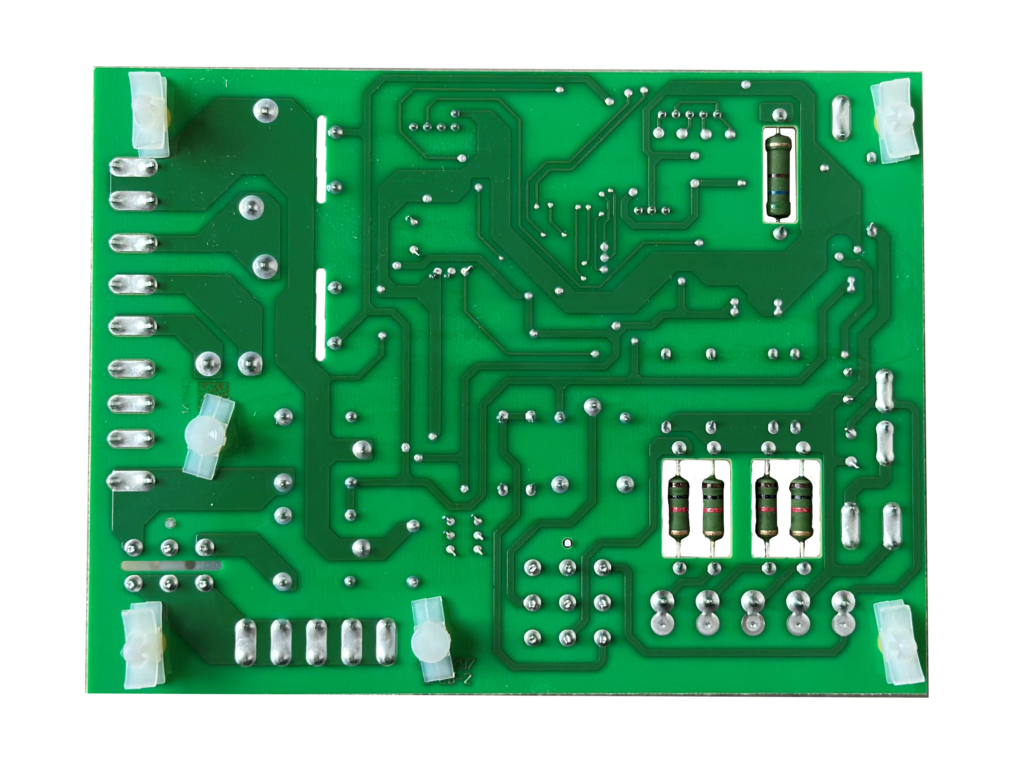

The ICM2805A is a low cost replacement for Nordyne 624631 furnace control board which is used to control gas valve, inducer draft motor, circulating blower and hot surface ignitor.

DETAILS:

  • Low cost form, fit and functional OEM replacement control board for Nordyne: 624631
  • For use with G3, G4, G5, G6, M2 and M3 furnace modules
  • Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
  • Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout and limit switches
  • Microprocessor-based precision
  • Twinning compatible with another ICM2805A furnace control
  • Diagnostic LEDs aid in testing and troubleshooting

SPECIFICATIONS:

Line Voltage Range: 120/240 VAC @ 60 Hz
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC

WEIGHT/DIMENSIONS:

  • Weight: 0.4
  • Height: 1.5
  • Width: 6
  • Length: 4.5

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download
pdf
Wiring Diagram 1 download
pdf
Wiring Diagram 2 download
pdf
Wiring Diagram 3 download

Videos:

No videos found.

Replaces:

Nordyne: 624631, 624631B (for use with G3, G4, G5, G6, M2 and M3 furnace modules)
