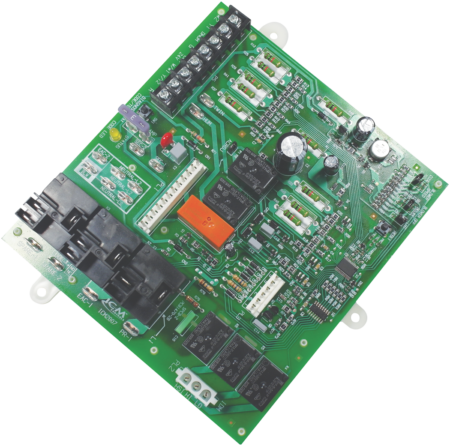

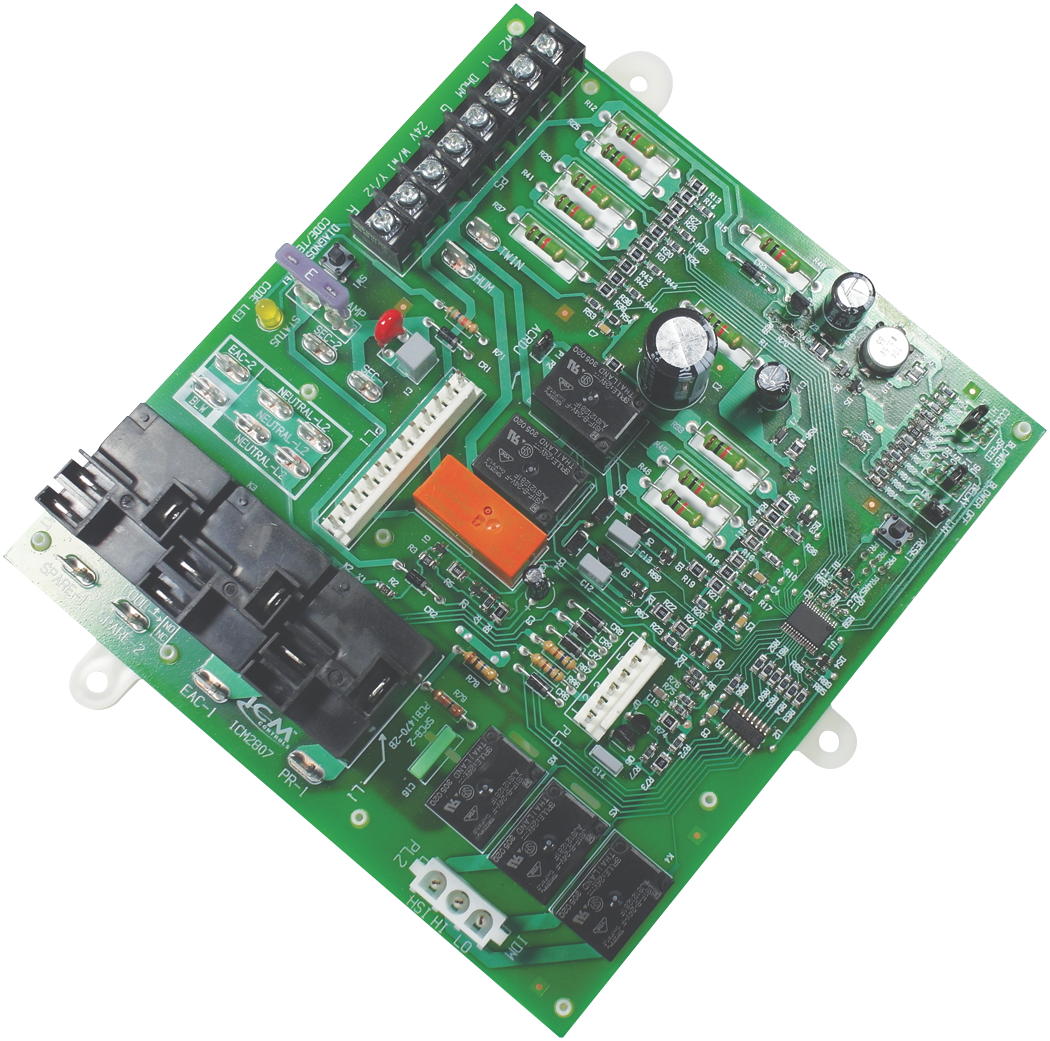

ICM2807

,

Carrier OEM Replacement Control

Low-Cost Form, Fit And Functional Replacement Board

The ICM2807 is a low cost replacement for the Carrier HK42FZ017 furnace control board which is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner

DETAILS:

The ICM2807 is a low cost fit, form and functional replacement for the Carrier HK42FZ017 furnace control board.
  • Microprocessor-based precision
  • Designed for 100% gas shutoff in case of ignition failure
  • Twinning compatible with another ICM2807 control
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Compatible with 24 VAC standard thermostat
  • Continuous Blower Speed Jumper
  • Limit Switch Lockout Time
  • Limit Switch Lockout After Power Interruption
  • Self-Diagnostics
  • Provides diagnostic

SPECIFICATIONS:

Ambient Temperature
– Operating: -40°F to 176°F
– Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
Voltage Range: Line (98 to 132 VAC) @ 60 Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 10 HP, 120 VAC
Low Heat: 5A, 1/2 HP, 120 VAC
High Heat: 10A, 1 HP, 120 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
EAC: 1A @ 120 VAC
Humidifier: 0.5A & 24 VAC

WEIGHT/DIMENSIONS:

  • Weight: 1
  • Height: 1.5
  • Width: 6.5
  • Length: 7

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download
pdf
Wiring Diagram download
pdf
Fault Code Label download

Videos:

No videos found.

Replaces:

Carrier: HK42FZ017
