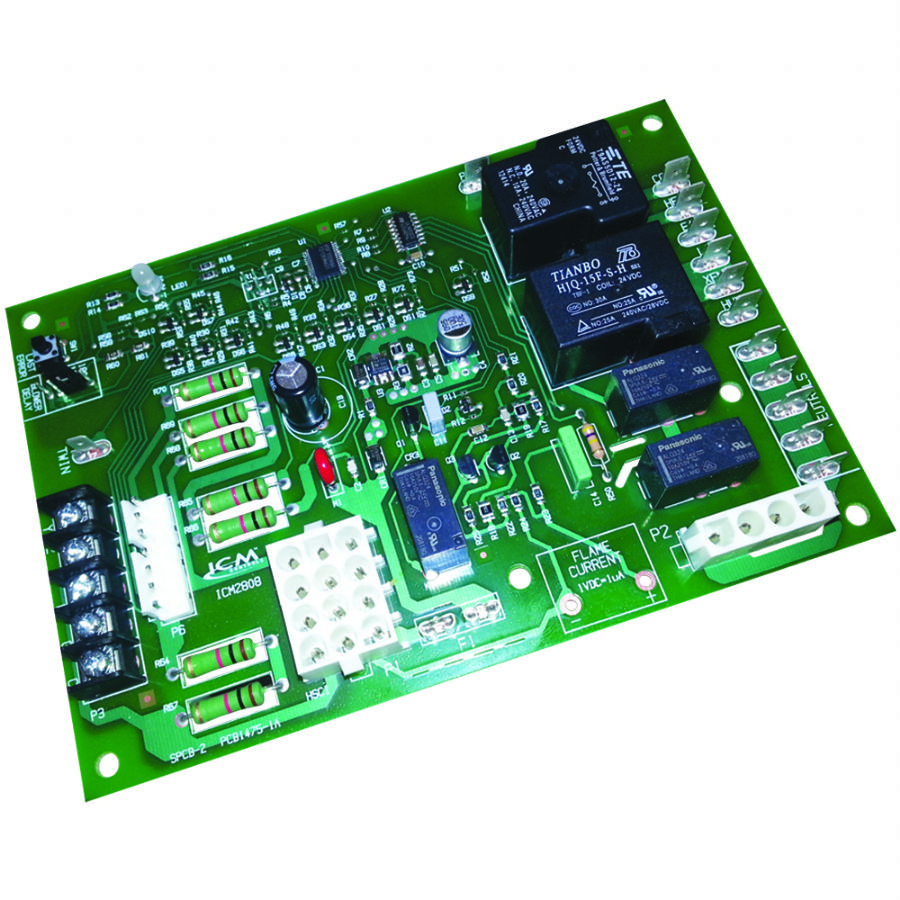

ICM2808

ICM (OBSOLETE/LEGACY PRODUCTS)

York OEM Replacement Board

DETAILS:

The ICM2808 is a low cost fit, form and functional replacement for the York S1-331-03010000 and S1-331-02956000 furnace control boards.

Controls gas valve, Ignitor, blower motor, Inducer, humidifier, and air cleaner.
Microprocessor-based precision
Designed for 100% gas shutoff in case of ignition failure
Twinning compatible with another ICM2808 control
Reverse polarity protection
Secondary brownout voltage protection
Compatible with 24 VAC standard thermostat
Provides dual-color diagnostic LED to aid in troubleshooting

SPECIFICATIONS:

ELECTRICAL RATINGS

Voltage Range: Line (98 to 132VAC) @ 60Hz
Control Voltage Range: 18-30VAC @ 60Hz
Relay Outputs: Meets or exceeds O.E.M. board

TIMING
Heat Blower On Delay: 30 seconds
Heat Blower Off Delay: 90-180 seconds

ENVIRONMENT
Ambient Temperature:
– Operating: -40°F to 176°F
– Storage: -40°F to 185°F
Humidity: 5% to 95% R.H. (non-condensing) @ +55°F

WEIGHT/DIMENSIONS:

Weight: 0.45
Height: 1
Width: 7
Length: 4.75

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

York: S1-331-03010000, S1-331-02956000
