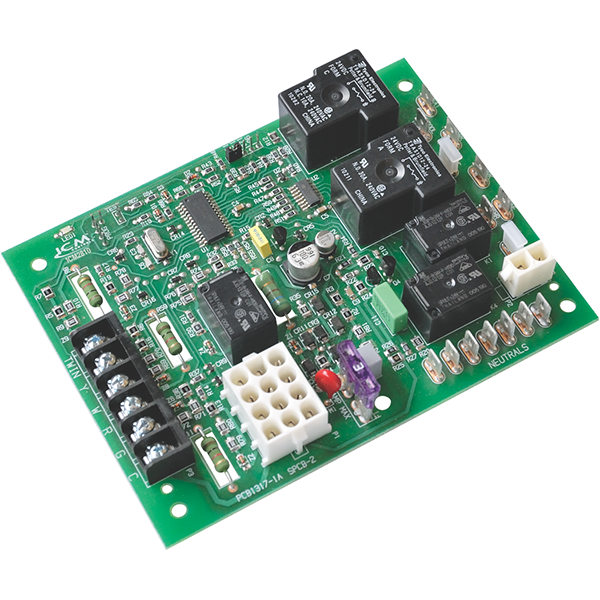

ICM2810

,

Goodman OEM Replacement Control

Low-Cost Form, Fit And Functional Replacement Board

The ICM2810 is a low cost replacement for the Goodman PCBBF136 and PCBBF140 furnace control boards which is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner.

DETAILS:

  • Low cost, Goodman replacement board
  • Microprocessor-based precision
  • Controls inducer and blower fan motors, hot surface igniter, and gas valve
  • Monitors timing, trial for ignition, flame sensing, pressure switches, limit switches
  • Designed for 100% gas shutoff in case of ignition failure
  • Reverse polarity protection
  • Compatible with 24 VAC standard thermostat
  • Twinning compatible with another ICM2810 control board
  • Compatible with LP or natural gas
  • Provides diagnostic LED to aid in testing/troubleshooting

SPECIFICATIONS:

Pre-purge Time: 15 seconds
Igniter Warm Up Time: 18 seconds
Post-Purge Time: 15 seconds
Total Trials for Ignition: 3 (auto rest after 1 hour)
Heat Blower On: 30 seconds
Heat Blower Off: Selectable 90/120/150/180 seconds
Fan (Heat) On/Off Delay: 1 second
Cool On: 5 seconds
Cool Off: 45 seconds

WEIGHT/DIMENSIONS:

  • Weight: 0.5
  • Height: 1
  • Width: 6
  • Length: 4.5

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download

Videos:

No videos found.

Replaces:

Goodman: PCBBF136, PCBBF140
