DETAILS:
- Low cost form, fit and functional replacement board for Lennox BCC1, BCC2 and BCC3 circuit boards
- Controls inducer fan motor, blower fan and monitors limit switches
- Microprocessor-based design
- Functions with all 24 VAC thermostats

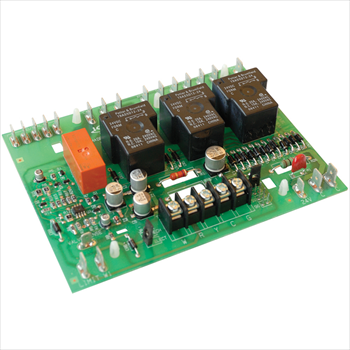

ICM289
Lennox OEM Replacement Control
Low-Cost Form, Fit And Functional Replacement Board
The ICM289 control is low cost form, fit and functional replacement board for Lennox BCC1, BCC2 and BCC3 circuit boards. It controls inducer fan motor, blower fan and monitors limit switches.
SPECIFICATIONS:
Line Voltage Range: 98-132 VAC @ 60 Hz
Cool Blower: 20A @ 120 VAC
Heat Blower: 20A @ 120 VAC
Inducer Motor: 5A @ 120 VAC
Cool Blower ON Delay: 1 second
Cool Blower OFF Delay: 1 second
Heat Blower ON Delay: 45 seconds
Heat Blower OFF Delay: 90, 150, 210, 270 seconds
WEIGHT/DIMENSIONS:
Weight: 0.35
Height: 1
Width: 5.625
Length: 4.25
Videos:
No videos found.
Replaces:
Lennox: all BCC1, BCC2 and BCC3 circuit boards, including models LB-53622A, BCC2-2REV8, 35K77, 35K7701, LB-90089A, 65K29, 65K2901, LB-50709BD, LB-65126A, LB-89859, LB-87086A, LB-87086, LB-63622AA, LB-90676A, 40L8801, 30H6701, 48K98, 48K9801, 45K48, 45K4801, 78J61, 78J6101, 68H08.
