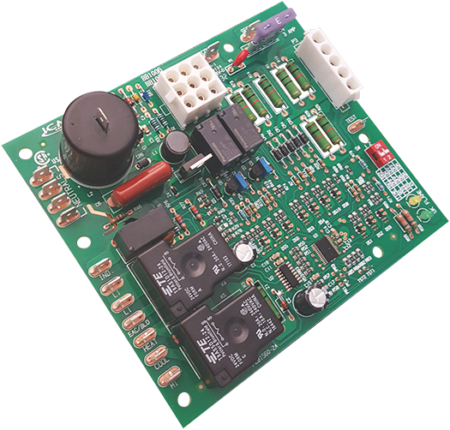

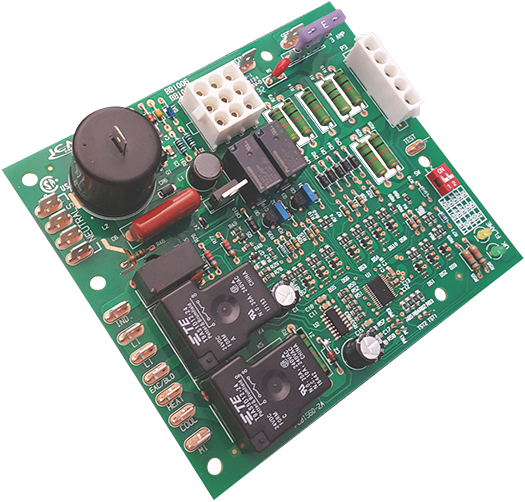

ICM2906

FURNACE CONTROL BOARDS, Reznor Replacement Boards

Reznor OEM Replacement Control

Direct Spark Ignition (DSI) Control Board

The ICM2906 is a low-cost microprocessor based replacement control that monitors timing, trial for ignition, system switches, flame sensing and lockout. A functional replacement for Reznor: 195573.

DETAILS:

Direct Spark Ignition (DSI) control board
Cooling and heating fan outputs
Microprocessor-based
Controls inducer motor, blower motor, air cleaner (if equipped), spark igniter & gas valve
Monitors timing, trial for ignition, system switches, flame sensing and lockout
Compatible with LP or natural gas
LED indication for status and fault codes to aid in troubleshooting

SPECIFICATIONS:

Control Voltage: 18-30 VAC
Line Voltage: 120 VAC
Frequency: 60 Hz

Inducer Blower Output:
- Type: Relay
- Rating: 1/6 HP @ 125 VAC

Gas Valves:
- Type: Relay
- Rating: 1A @ 24 VAC

Heat Blower Output:
- Type: Relay
- Rating: 1/4 HP @ 125 VAC

Cool Blower Output:
- Type: Relay
- Rating: 1 HP @ 125 VAC

Operating Temperature: -40°F to 165°F (-40°C to 74°C)

Dimensions: 14.5” x 5”

WEIGHT/DIMENSIONS:

Weight: 1

Height: 2.5

Width: 5

Length: 14.5

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

Reznor: 195573

UTEC: 1097-211
