DETAILS:
- Replacement for York 03101251000
- Time and temperature terminate
- Integral short cycle protection
- High/low pressure switch monitoring
- Strip heat, reversing valve outputs
- High power condensor relay output

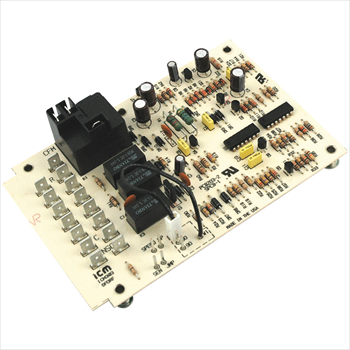

ICM303
OEM Replacement for York / Evcon
SPECIFICATIONS:
Voltage: 18 to 30 VAC
Frequency: 50/60 Hz
Relay Output: 1 HP fan @ 240 VAC
Strip Heat / Reversing Valve
Outputs: 24 VAC, 2 amps
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/60/90 min
WEIGHT/DIMENSIONS:
- Weight: 0.1
- Height: 1
- Width: 3.5
- Length: 2.875
LITERARY DOWNLOADS:
Installation Guide
download
Videos:
No videos found.
Replaces:
York: 03101251000, 9218-3741
Evcon: 9218-374
ICM: DFORF
Recommended Alternative:
No suggested alternative
