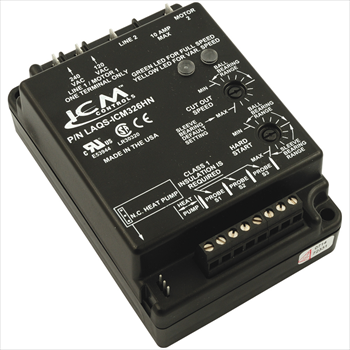

ICM326HM2

(120 or 208/240 VAC)

*This product has been replaced by the ICM325A — Learn more here

DETAILS:

  • Integral heat pump bypass circuitry allows electronic bypass of speed control
  • 80°F-105°F modulation
  • Solid state 10 amp load carrying capability
  • Single unit controls up to 3 refrigeration circuits
  • Integral transformer simplifies installation, reduces cost; direct setup from the line voltage
  • Features: hard start, low temperature cutoff, high temperature bypass
  • Ideal for low ambient conditions found in:
    • – Supermarkets, frozen food storage
    • – Computer rooms, cooling tower fans
    • – Temperature/humidity
    • – Sensitive environments
  • RoHS compliant / lead free design

SPECIFICATIONS:

Input/Output Voltage:
– Input/Output: 120 or 208/240 VAC
– Frequency: 50/60 Hz
– Power Consumption: 4 VA @ 24 VAC
Output:
– Type: Solid State
– Form: Triac
– Output Current: Max – 10 amps; Min – 100mA
Voltage Drop: 3.0 volts max.
Leakage Current: 5 mA max.
Modulation: 80°-105°F

WEIGHT/DIMENSIONS:

  • Weight: 0.8
  • Height: 2
  • Width: 3.25
  • Length: 4.75

LITERARY DOWNLOADS:

pdf
Installation Guide download
