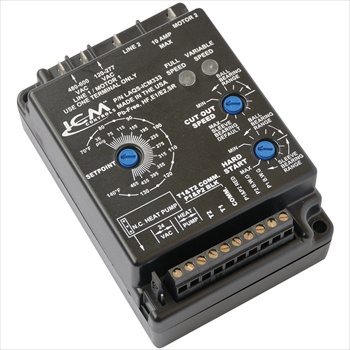

ICM333

Head pressure control with support for two pressure OR two temperature controls, 120-600 VAC; ideal for line voltage A/C and refrigeration systems

*This product has been replaced by the ICM325A — Learn more here

DETAILS:

  • Supports up to two temperature OR two pressure probes
  • Integral heat pump bypass circuitry allows electronic bypass of speed control
  • Dial temperature or pressure setpoint: 70°F to 140°F; 35-465 psig
  • Solid state 10 amp load carrying capability
  • Eliminates overshoots common to on/off and pressure switch controls
  • Helps prevent evaporator freeze-ups, low pressure cut-outs and liquid-slugged compressors in low ambient conditions
  • Features: hard start, low temperature cutoff, high temp bypass
  • RoHS compliant / lead free design

SPECIFICATIONS:

Line Voltage: 120, 208, 240, 277, 480 and 600 VAC
Control Voltage: 18-30 VAC
Frequency: 50-60 Hz

Operating Temperature: -40°F to 176°F
Heat Pump Override: 24 VAC, N.C./N.O.

Probes:
– Temperature: Thermistor, 10K ohm at 77°F
– Pressure: ICM380 (ordered separately)

WEIGHT/DIMENSIONS:

Weight: 0.55
Height: 1.75
Width: 3.25
Length: 4.75

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download

Videos:

No videos found.
