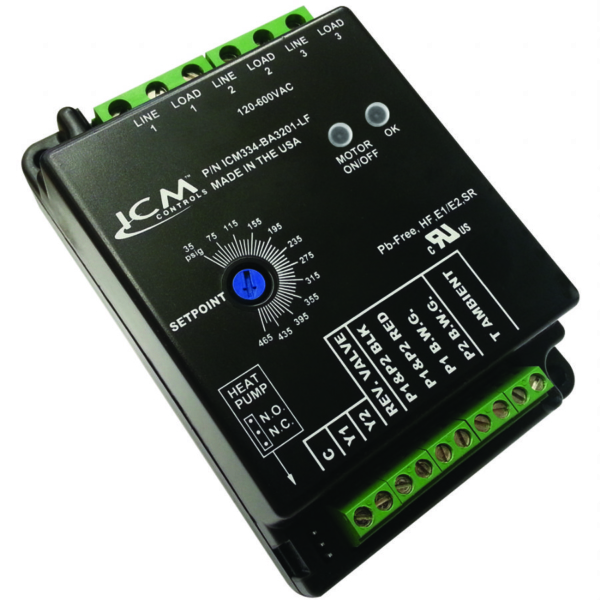

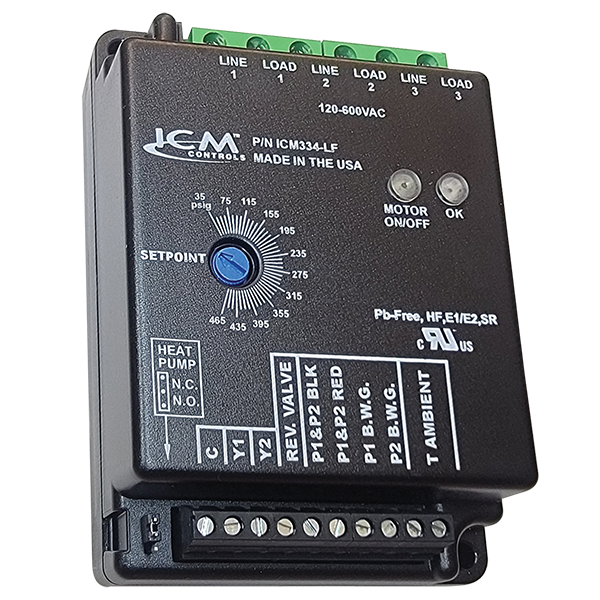

ICM334

Head Pressure Controls

3-Phase Head Pressure Controls

Three-Phase ON /OFF Head pressure control with support for one temperature sensor and up to two additional temperature or pressure probes, ideal A/C and refrigeration systems. Regulates head pressure via pressure input.

DETAILS:

  • Supports one temperature sensor and up to two additional temperature OR pressure probes
  • Integral heat pump bypass circuitry allows electronic bypass of speed control
  • Dial pressure setpoint: 35-465 psig
  • Solid state 10 amp load carrying capability
  • Helps prevent evaporator freeze-ups, low pressure cut-outs and liquid-slugged compressors in low ambient conditions
  • Features: Heat Pump bypass
  • RoHS compliant / lead free design

SPECIFICATIONS:

Line Voltage: 120-600 VAC
Control Voltage: 18-30 VAC
Frequency: 50-60 Hz
Operating Temperature: -40°F to +140°F ( -40°C to +60°C)
Heat Pump Override: 24 VAC, N.C./N.O.
Probes:
– Ambient Temperature: Thermistor, 10K ohm at 77°F (25°C)
– Temperature: Thermistor, 10K ohm at 77°F
– Pressure: ICM380 (ordered separately)

WEIGHT/DIMENSIONS:

Weight: 0.75
Height: 1.75
Width: 3.25
Length: 4

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download
