DETAILS:
It helps protect against:
- Under voltage
- Over temperature
- Power interruptions
- Rapid short cycling
- Shorted or open temperature sensor

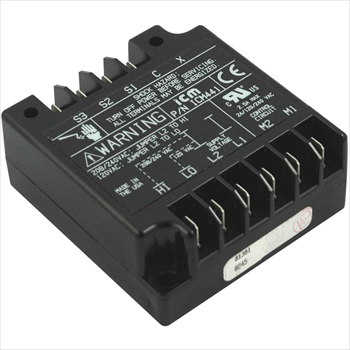

ICM441
Motor Temperature Controller
Protect your most valuable investments!
The ICM441 is a low cost, rugged, motor temperature monitoring device designed to shut off power to a motor before thermal damage occurs.
SPECIFICATIONS:
Voltage:
120 or 208/240 VAC
120 or 208/240 VAC
Frequency:
50/60 Hz
50/60 Hz
Output:
– Relay, SPST
– N.O.: 6 amps resistive / 4 amp inductive
– Relay, SPST
– N.O.: 6 amps resistive / 4 amp inductive
WEIGHT/DIMENSIONS:
- Weight: 0.35
- Height: 1.25
- Width: 3
- Length: 3.25
Videos:
No videos found.
Replaces:
Bristol: 241680
Copeland: 071-0376-01 / 02, 071-0397-00 / 01, 071-0424-00 / 01, 071-9800-00 / 01
Mars: 37300, 37302, 37304, 37306, 37322
Texas Instruments: 15AA1600 B/C, 15AA1603 B/C, 31AA1600 E, 31AA1606 E
