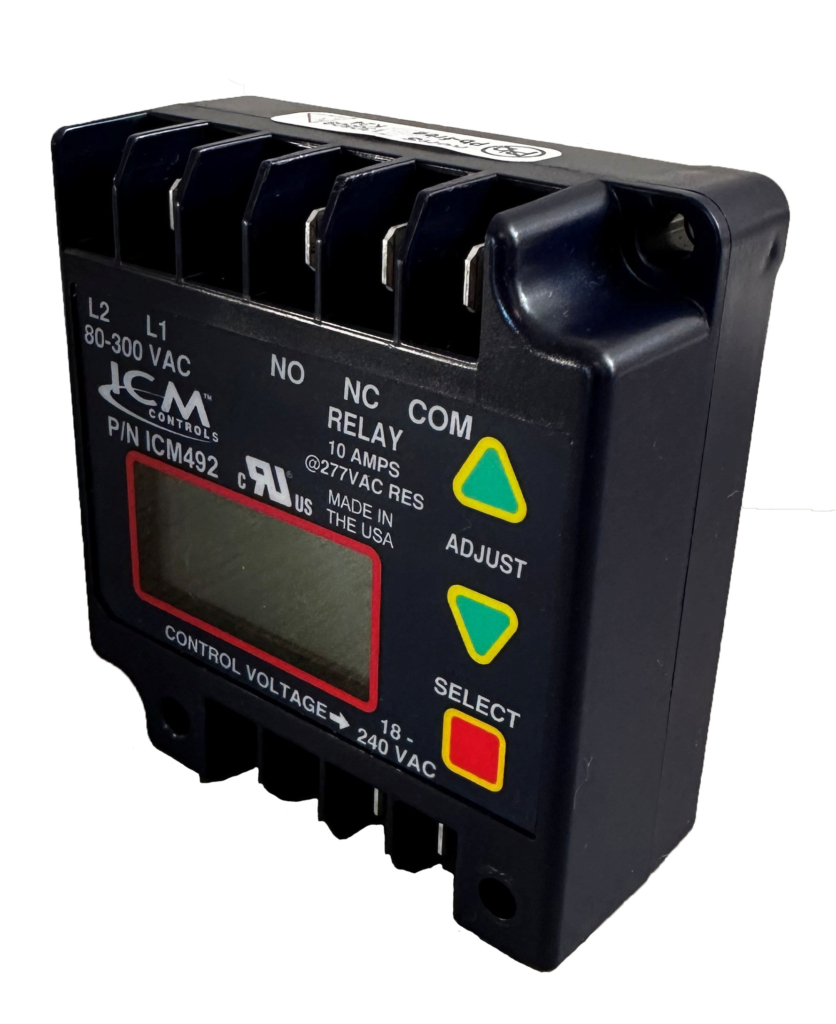

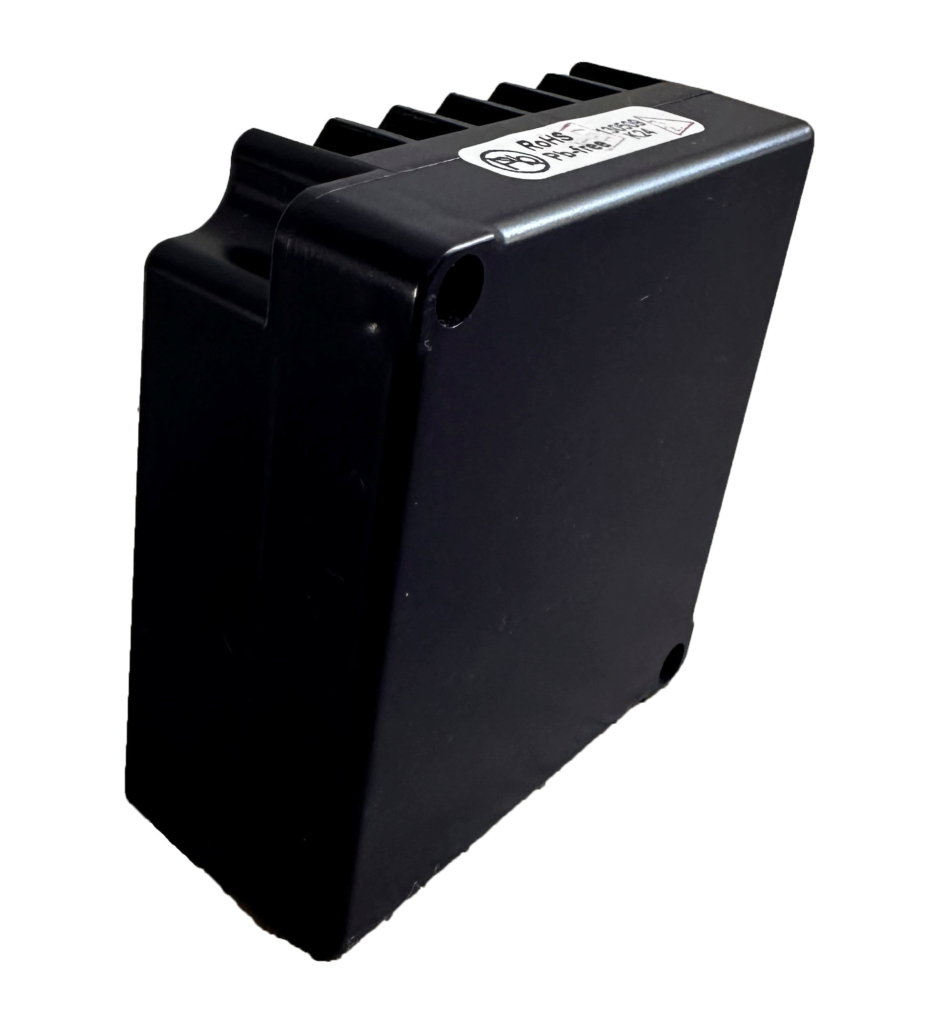

Single Phase Line Voltage Monitor
- Protects Against Over and Under Voltage, and Rapid Short Cycling caused by Transient Faults and Power Interruptions
- Easy-view, Backlit Digital Display
- RMS Voltage Monitoring
- Adjustable Voltage Set Point
- Adjustable Over Voltage Setting
- Adjustable Under Voltage Setting
- Adjustable Anti-Short Cycle Time Delay
- Adjustable Response Time
- Control Mode
- 5-Fault Memory
- Universal Line Voltage Input
- Heavy Duty SPDT Relay Output
- Universal Control Voltage Input for integrating a thermostat
SPECIFICATIONS:
User Adjustable Settings:
– Voltage setpoint: 95-280 VAC
– Anti-short cycle time delay: 0-720 seconds
– Over voltage setting: 5-25%
– Under voltage setting: 5-25%
– Control mode: On and Off
– Response time: 0.1 to 10 seconds
Inputs:
– Voltage: 80 to 300 VAC
– Frequency: 50/60 Hz
– Accuracy: ±2%
– Low Power Consumption: max 50 mA @ 120V, max 100 mA @ 240V
– Control Voltage: 18 to 240 VAC
Output:
– Type: Dry relay contacts
– Form: SPDT
Relay Contact Ratings:
– N.C. Contacts: 10A resistive @ 277 VAC
– N.O. Contacts: 10A resistive @ 277 VAC
Connection Terminals:
– 0.25” male fast-on
Environmental:
– Operating temperature range: -30°C to +70°C
– Storage temperature range: -40°C to +85°C
– Maximum Operating/Storage Relative Humidity: 95% non-condensing
WEIGHT/DIMENSIONS:
- Weight: 0.4
- Height: 1.35
- Width: 3.2
- Length: 3
Replaces:
Wagner / DiversiTech: DSP-1
