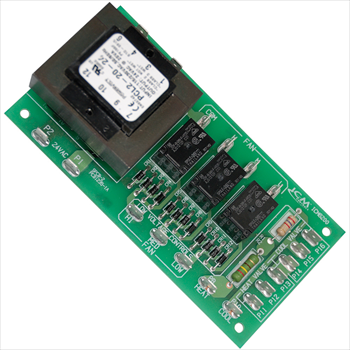

ICM6200

Fan Coil Relay Control Center

DETAILS:

  • Ability to operate line voltage, 3-speed fan motor with low voltage controls
  • Compatible with 4-pipe, 2-pipe, heat pump, auto changeover
  • 20 VA 24 VAC power supply
  • Suitable for 1/8 HP motors
  • 1/4″” quick connect terminal
  • Mounts with standard 3″” track
  • UL Recognized

SPECIFICATIONS:

Input:
– Transformer Primary: 115 VAC, 50-60 Hz
– Fan Inputs HI, MED, LOW: Nominal 17mA @ 24 VAC
– Heat & Cool: 0.83A @ 24 VAC
Output:
– Transformer Secondary: 24 VAC; 20 VA
– Relay Outputs HI, MED, LOW: 1/8 HP @ 115 VAC; 10A @ 240 VAC resistive max.
– Heat & Cool Valves: 0.83A @ 24 VAC

WEIGHT/DIMENSIONS:

  • Weight: 1.05
  • Height: 1.75
  • Width: 5.875
  • Length: 3

LITERARY DOWNLOADS:

pdf
Installation Guide download
pdf
Sell Sheet download

Videos:

No videos found.

Replaces:

Honeywell: W6380B

BSR/Xactone: FC/H-2



Recommended Alternative:

Function specific; No suggested alternative
