ICM6501

,

Fan Blower Controls

ClimaTek Air Handling Replacement Control

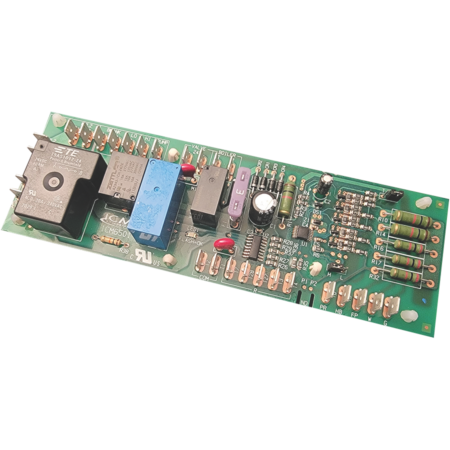

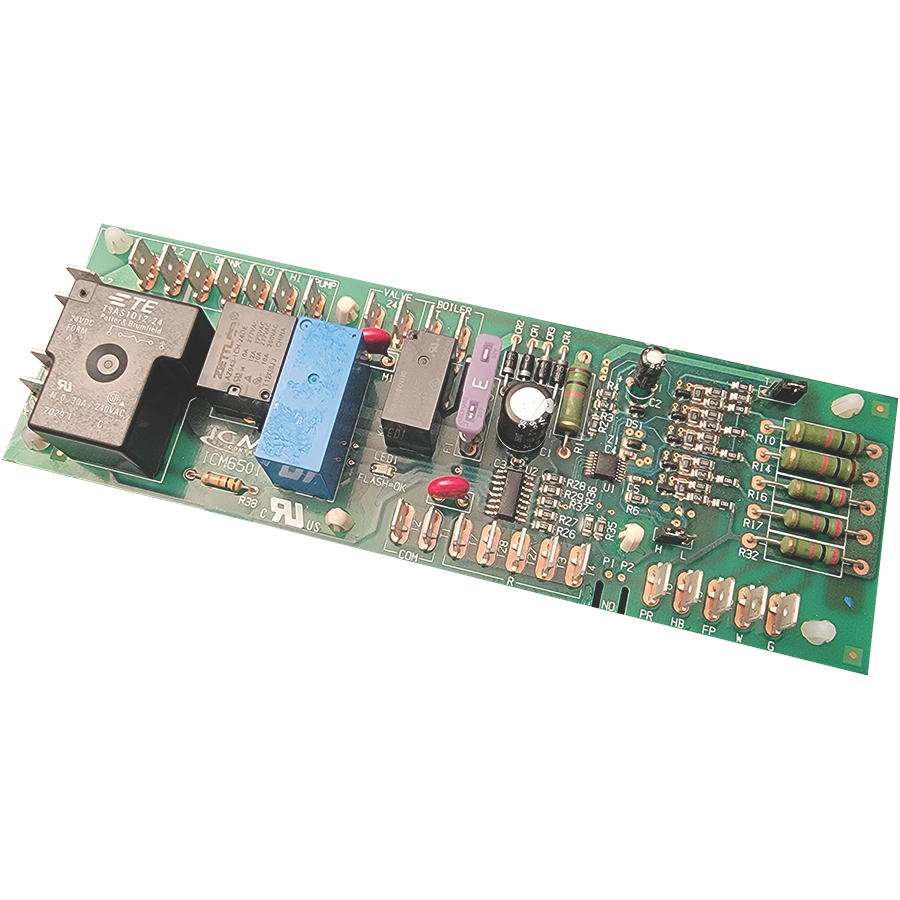

The ICM6501 air handler control board operates with hot water heating systems. When the thermostat calls for Heat, the control will energize the Water Pump, Valve and Boiler. The blower will energize at the selected speed after 90 seconds to allow the coil to preheat.

DETAILS:

  • Controls the water pump, valve, fan and boiler in a hot water heating
    system
  • Jumper selectable high and low speed fan speed selection for 2 speed
    blower operations
  • Integral fan delays for both heating and standard fan operation
  • Monitors safety switches including the pressure switch and freeze
    protection switch
  • Test mode feature for system diagnostic purposes
  • LED status Light to aid in diagnosing power issues

SPECIFICATIONS:

• Input Voltage
   24 VAC, 120/240 VAC, 50/60 Hz
• Valve Output
   24 VAC, 50/60 Hz, 5A
• Blower Fan
   120/240 VAC, 50/60 Hz, 9.8 FLA
• Water Pump
   120/240 VAC, 50/60 Hz, 1.5 FLA
• Boiler
   24 VAC, 50/60 Hz, 5A
• Timing
   Fan on delay: 0 secs, Fan off delay: 45 secs, Heat fan
   on delay: 90 secs, Heat fan off delay: 20 secs
• Surrounding Air Temperature Rating:
   -40ºF to 167ºF  (-40ºC to 75ºC)

WEIGHT/DIMENSIONS:



LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download

Videos:

No videos found.

Replaces:

ClimaTek: CB201

First Company: CB201
