DETAILS:
- Controls the speed of a GE 2.3 Electronically Commutated Motor (ECM).
- The user controls the flow index from 0-100%.
- Feedback to the control via pulses on the RPM input.
- Flow index percentage is alternately displayed with the motor’s RPM.

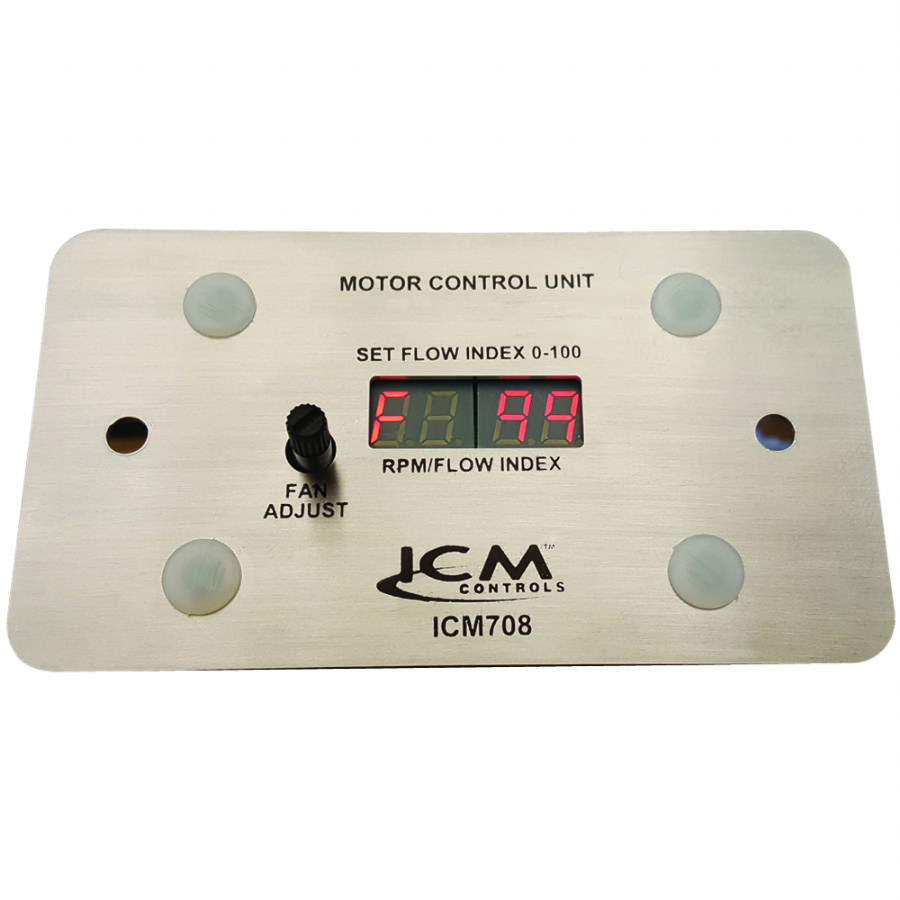

ICM708
Motor Speed Controls
GE 2.3 ECM Controller
Manual or automated control over an ECM for improved “air balance”. By Pulsing (PWM) the time, the motor is on and off and varying the speed of the motor greatly allows for control of the motor, which increases the motors efficiency & reduces wear and tear on the motor. It leads to greater overall system efficiencies and saves energy. It also helps to monitor/display the RPM/CFM of the motor.
SPECIFICATIONS:
Power Supply: 18-30 VAC
RPM Input: 5 VDC
PWM & ON/OFF Outputs: 14 VDC (PWM 80Hz)
RPM Input: 5 VDC
PWM & ON/OFF Outputs: 14 VDC (PWM 80Hz)
WEIGHT/DIMENSIONS:
- Weight: 1
Videos:
No videos found.
Replaces:
EVO/ECM-VCU-36-mp
