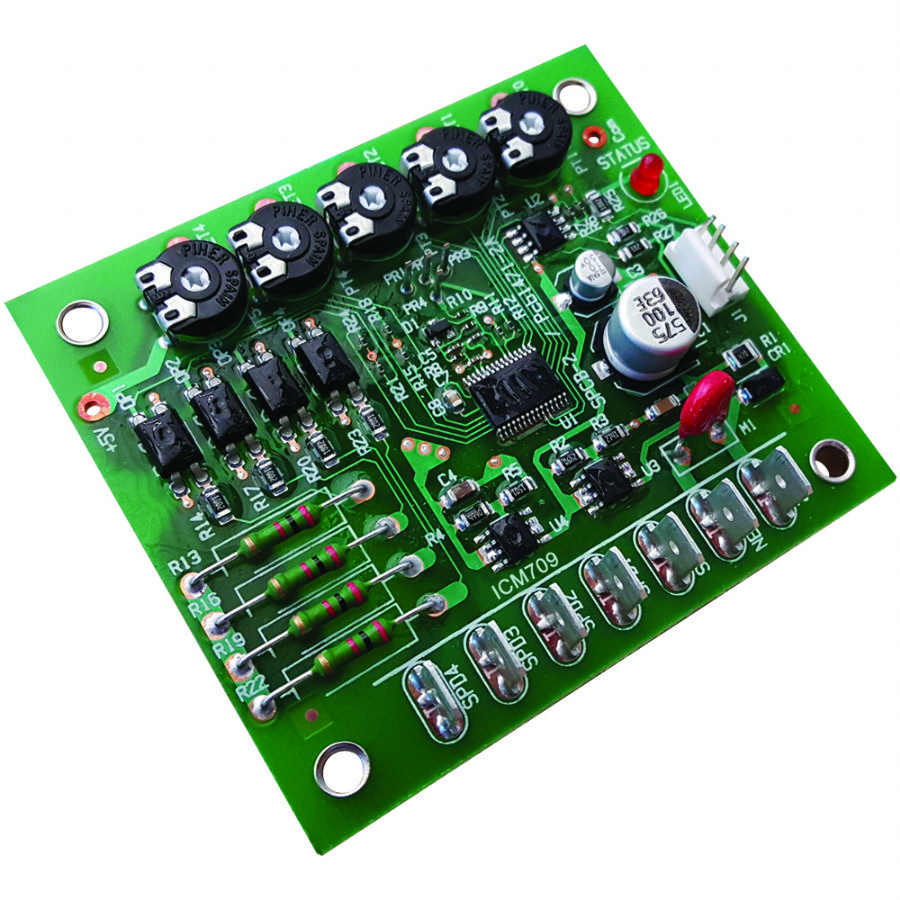

ICM709

ECM CONTROLS, MOTOR SPEED CONTROLS

Motor Speed Controls

GE 2.3 ECM Controller

The ICM709 is a motor speed controlling interface for use with a low voltage thermostat to control the ECM’s output.

DETAILS:

A low current pulse width modulated signal for controlling the speed of a GE 2.3 ECM based on user settable potentiometers (SET0 – SET4) and a thermostat’s requested call.
RPM Feedback: On-board LED diagnostics for a visual indication of the motor’s status.

SPECIFICATIONS:

INPUT

Power Supply: 18-30VAC
RPM Input: 15 VDC
Thermostat Inputs (SPD1-SPD4): 18-30 VAC

OUTPUT

PWM & On/Off Output: 14 VDC (PWM 80 Hz)

WEIGHT/DIMENSIONS:

Weight: 1

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

EVO/ECM-4Spd
