DETAILS:
- Single or dual temperature inputs
- Heat pump bypass circuitry
- Low current pulse width modulated output
- Lead free design

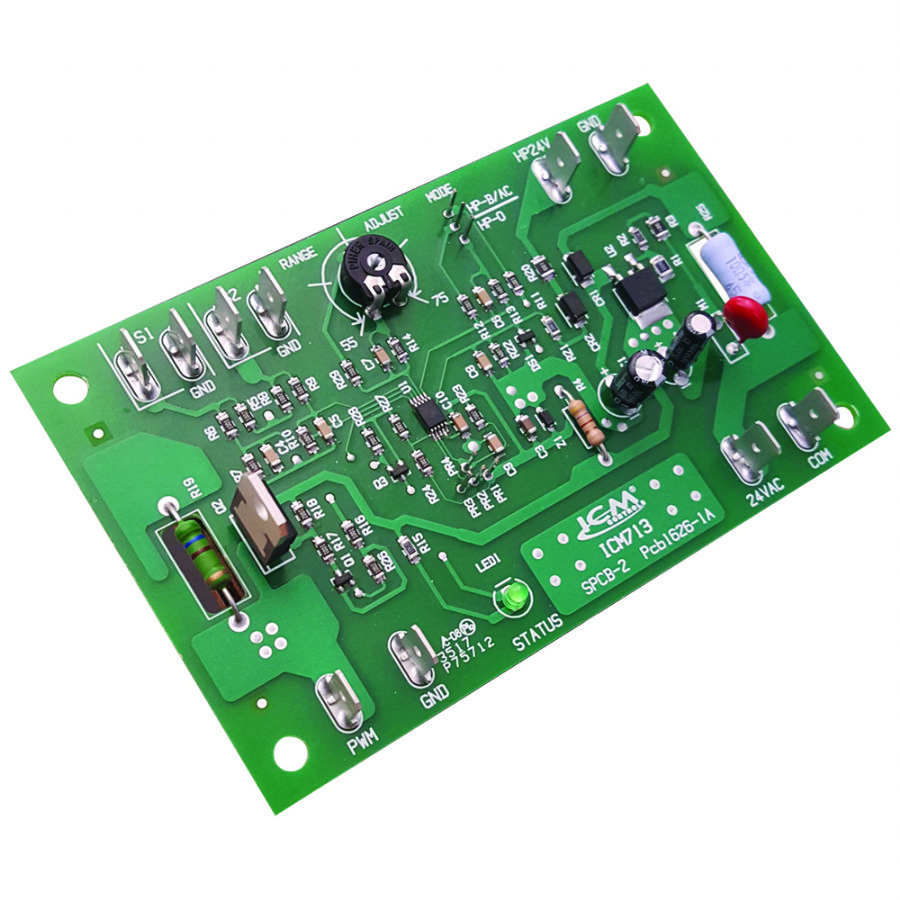

ICM713
Motor Speed Controls
ECM Controller
Manual or automated control over an ECM for improved “air balance”. By Pulsing (PWM) the time, the motor is on and off and varying the speed of the motor greatly allows for control of the motor, which increases the motors efficiency & reduces wear and tear on the motor.
It leads to greater overall system efficiencies and saves energy. It also helps to monitor/display the RPM/CFM of the motor.
SPECIFICATIONS:
Voltage: 18-30 VAC
Frequency: 50/60 Hz
Output: 13.5 VDC 10mA max 80 Hz, 0-100%
Operating Temperature: -40°F to 158°F (-40°C to 70°C)
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
Temperature Probes: 10K (NTC, J-Curve)
WEIGHT/DIMENSIONS:
- Weight: 1
- Height: .68
- Width: 3
- Length: 4.72
Videos:
No videos found.
Replaces:
Hoffman: 880-ECM(10)SSHP
