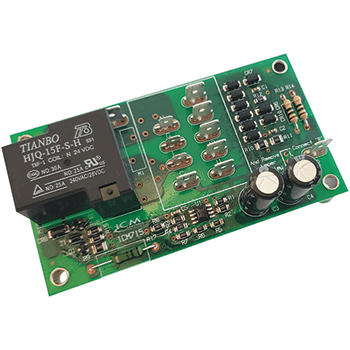

ICM715

Motor Speed Controls

ECM to PSC Motor Controller

The ICM715 provides a cost effective control solution when converting from the use of an expensive electronically commutated motor (ECM) to using an economical permanent split capacitor motor (PSC).

DETAILS:

Provides a single technician selected motor speed when replacing an OEM constant torque electronically commutated motor
Simple installation
Works on constant torque blower motor such as X13 or SelecTech constant torque electronically commutated motor up to 1 HP
User selectable 3 minute delay on break option

SPECIFICATIONS:

Motor Voltage: 120 VAC or 208-240 VAC
Input Control Voltage: 24 VAC
Input Frequency: 50-60 Hz
Maximum Blower Horse Power: 1 HP

WEIGHT/DIMENSIONS:

Size: 4.3” x 3.1”

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

QwikSwapX1
