DETAILS:
- Low cost motor starting device
- Increases starting torque up to 300%
- Positive Temperature Coefficient (PTC) Technology
- Quick recycling
- Self-adjusting to voltage fluctuation
- Easy to install: 2-wires, clips or screws

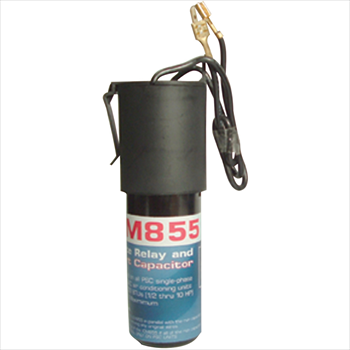

ICM855
PTCR Hard Starts
Low-cost motor starting device
ICM offers superior patented technology that is safer on your motor windings. It auto-senses the back EMF and cuts out of the circuit at the precise time when starting a motor; eliminates all-in capacitor dump used by PTCR devices (For up to 1.5 HP Applications)
SPECIFICATIONS:
Voltage: 115-288 VAC
Capacitor: 43-52 Mfd., 330V
Range: 1/2 to 10 HP range (up to 1.5 HP recommended)
Capacitor: 43-52 Mfd., 330V
Range: 1/2 to 10 HP range (up to 1.5 HP recommended)
WEIGHT/DIMENSIONS:
- Weight: 0.3
- Height: 5
- Width: 1.75
- Length: 2.25
Videos:
No videos found.
Replaces:
A-1: WXS-5
MARS: 32701, 35701
SUPCO: SPP-5
WAGNER-DIVERSITECH: DST-5
