SC5010

Programmable Thermostats, THERMOSTATS

Programmable Thermostats

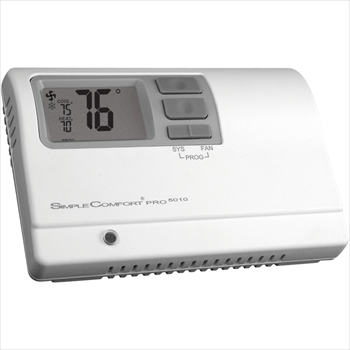

SimpleComfort® PRO Programmable Thermostat

Simplicity is in its name. ICM Controls SimpleComfort® PRO thermostats feature innovation and technology that deliver measurable value, simplified installation and increased profitability.

DETAILS:

Programmable
Single-stage heat/cool
Single-stage heat pump
Flexible 7-Day, 5-2-Day and 5-1-1-Day programming
Dual Powered
ICM patented Thermal Intrusion Barrier
ICM patent-pending SimpleSet™ Target Programming technology
Large display with backlight
Permanent memory
Accuracy: +/- 1°F, +/- 0.5°C
Adjustable max heat/min cool setpoints
Manual or auto changeover
Field adjustable calibration
Adjustable maximum heat/minimum cool setpoints
Adjustable temperature differential
Configurable remote sensor compatible
Selectable °F or °C
Keypad lockout
Soft-touch controls
Status LED

SPECIFICATIONS:

Electrical Rating:
– 24 VAC (18-30 VAC)
– 1 amp maximum per terminal
– 4 amp maximum total load

Temperature Control Ranges:
45°F to 90°F (7°C to 32°C)

Accuracy:
± 1°F (± 0.5°C)

Terminations:
RC, RH, C, W/O/B, Y, G, S1, S2

WEIGHT/DIMENSIONS:

Weight: 0.35
Height: 1.12
Width: 5.5
Length: 3.75

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide - ENGLISH download

Application/Install Guide - SPANISH download
